GE Industrial  |  SKU: CR306G003
28% off

CR306GOO3

$2,778.68 $3,855.00
Shipping calculated at checkout.
GE Industrial CR306G003 NEMA rated 3 Pole Magnetic Motor Starter with a 230-240 volt AC coil. Starter is rated for 270 AMPS, 100 H.P @ 230 volt, 200 H.P. @ 460 volt 3 Phase and separate bimetal heaters must be purchased based on the Full Load AMPS (FLA) of the motor.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this starter.

Ships same day up until 4 p.m. EST

5-7 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

Toolless contactor disassembly (Sizes 00-4) allows quick access for inspection and maintenance. Just release two retainers and pull a clip to get at magnet, coil, and contacts.

Current-carrying components contact tips are weld-resistant silver cadmium oxide (fine silver on sizes 00 and 0 only). Contacts are installed in a wedge configuration for positive make with minimum bounce.

Visual trip indicator with manual reset to avoid surprise restarts. Reset occurs on arm upstroke so a tripped condition can’t be overridden by holding the arm down.

ge logo

CR306GOO3 is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

GE’s CR306G003 full voltage (600-Volt maximum) magnetic motor starter has an encapsulated coil and a 3-leg overload relay to protect against overloads in all phases. It is on standard specifications of major manufacturers. The line offers features and benefits most asked for by users. Forms available include reversing and nonreversing, two-speed, and combination, sizes 00-9.

The CR306GOO3 starters have a wide range of accessories including auxiliary contacts, coils, fifth-pole addition, vertical and horizontal mechanical interlocks, surge suppressors, control circuit fusing, NEMA Type enclosures, push buttons, selector switches, indicating lights, control transformers, space heaters, and more.

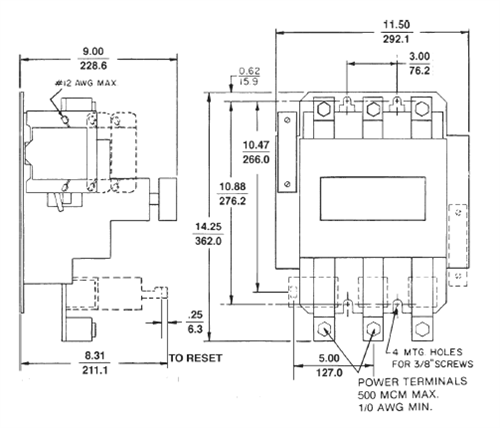

Click here for a catalog page of this GE NEMA Starter

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
--75100200200-2703000CR306G003230-240 volt AC
