GE Industrial | SKU:
CR306B0**
Obsolete
CR306BO**
$0.00
Unit price
/
Unavailable
Shipping calculated at checkout.

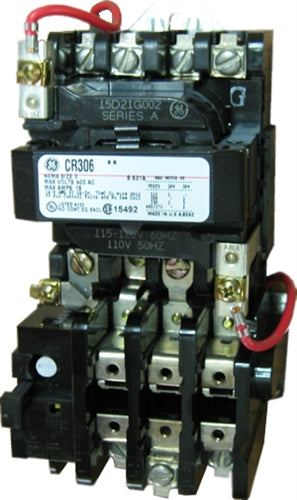

GE Industrial CR306B0** NEMA rated 3 Pole Magnetic Motor Starter with an AC coil (must specify voltage below). Starter is rated for 18 AMPS, 3 H.P @ 230 volt, 5 H.P. @ 460 volt 3 Phase and separate bimetal heaters must be purchased based on the Full Load AMPS (FLA) of the motor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this starter.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this starter.
Obsolete - Please call 877.334.7893 for replacement
Toolless contactor disassembly (Sizes 00-4) allows quick access for inspection and maintenance. Just release two retainers and pull a clip to get at magnet, coil, and contacts.
Current-carrying components contact tips are weld-resistant silver cadmium oxide (fine silver on sizes 00 and 0 only). Contacts are installed in a wedge configuration for positive make with minimum bounce.
Visual trip indicator with manual reset to avoid surprise restarts. Reset occurs on arm upstroke so a tripped condition can’t be overridden by holding the arm down.
Current-carrying components contact tips are weld-resistant silver cadmium oxide (fine silver on sizes 00 and 0 only). Contacts are installed in a wedge configuration for positive make with minimum bounce.
Visual trip indicator with manual reset to avoid surprise restarts. Reset occurs on arm upstroke so a tripped condition can’t be overridden by holding the arm down.
CR306BO** is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
GE’s CR306B0 full voltage (600-Volt maximum) magnetic motor starter has an encapsulated coil and a 3-leg overload relay to protect against overloads in all phases. It is on standard specifications of major manufacturers. The line offers features and benefits most asked for by users. Forms available include reversing and nonreversing, two-speed, and combination, sizes 00-9.
The CR306B0 starters have a wide range of accessories including auxiliary contacts, coils, fifth-pole addition, vertical and horizontal mechanical interlocks, surge suppressors, control circuit fusing, NEMA Type enclosures, push buttons, selector switches, indicating lights, control transformers, space heaters, and more.
The CR306B0 starters have a wide range of accessories including auxiliary contacts, coils, fifth-pole addition, vertical and horizontal mechanical interlocks, surge suppressors, control circuit fusing, NEMA Type enclosures, push buttons, selector switches, indicating lights, control transformers, space heaters, and more.
Click here for a catalog page of this GE NEMA Starter
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| - | - | 3 | 3 | 5 | 5 | - | 18 | 3 | 0 | 0 | 0 | CR306B0** | |
