GE Industrial  |  SKU: CL45D300MD
Obsolete

CL45D300MD

$0.00
Shipping calculated at checkout.

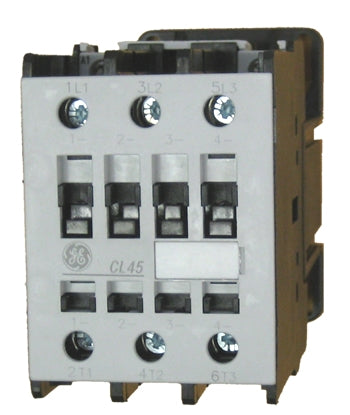

GE Industrial CL45D300MD 3-pole, 60 AMP contactor with a 24 volt DC coil. The CL45 is rated for 25 H.P. @ 460v 3 Phase, can be mounted on standard 35mm DIN rail and any RT1 overload relay can be directly attached to form a complete starter.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

CL45D300MD Datasheet

Obsolete - Please call 877.334.7893 for replacement information

Broad line offers wide array of contactors to meet most application needs from 5-500 HP at 460 volts. Common snap in accessories gives greater design versatility with lower inventory. Overload relays available in class 10, 20, and 30 with four set 40 function. Manual reset only overload to meet automotive requirements Finger and back of hands protected for greater safety Available with Ring Terminal Connections AC and DC coils available for a wide range of voltages Pre-assembled reversing forms available

ge logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

GE's C-2000 IEC Line of Contactors offer a wide array of power devices, accessories, and enclosures to give you greater design versatility. C-2000 components are loaded with features that make them easier to install, allow more flexible configurations, lower inventory requirements, and make better use of panel space. These components conform to international standards (UL, CSA, IEC-947, and CE) and have dual (U.S./European) markings to ensure global acceptance. A single nomenclature system allows simple sourcing world wide.
.

Click here for a catalog page of this GE Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
351010252560553000CL45D300MD24V DC
