GE Industrial  |  SKU: CL08E300MJ

CL08E300MJ

$0.00
Shipping calculated at checkout.

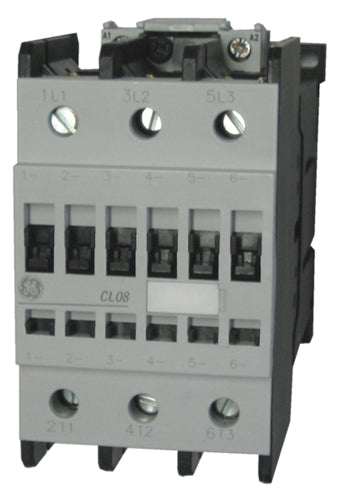

GE Industrial CL08E300MJ 3-pole, 110 AMP contactor with an electronic 110-127 AC/DC coil - Rated for 25 H.P @ 230 volt, 50 H.P. @ 460 volt 3 Phase and has screw terminals

CL08E300MJ Datasheet

Obsolete - Please call 877.334.7893 for replacement information

Broad line offers wide array of contactors to meet most application needs from 5-500 HP at 460 volts. Common snap in accessories gives greater design versatility with lower inventory. Overload relays available in class 10, 20, and 30 with four set 40 function. Manual reset only overload to meet automotive requirements Finger and back of hands protected for greater safety Available with Ring Terminal Connections AC and DC coils available for a wide range of voltages Pre-assembled reversing forms available

ge logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The GE CL line of Electronic Coils are loaded with features that make them easier to install, allow more flexible configurations, lower inventory requirements, and make better use of panel space. And their performance is second to none. The GE CL08E300MJ conforms to international standards (UL, cUL, and IEC-947) and have dual (U.S./European) markings to ensure global acceptance. A single nomenclature system allows simple sourcing worldwide. AC coils (both 50 Hz and 60 Hz versions) and DC coils are available for a wide range of voltages for flexibility.

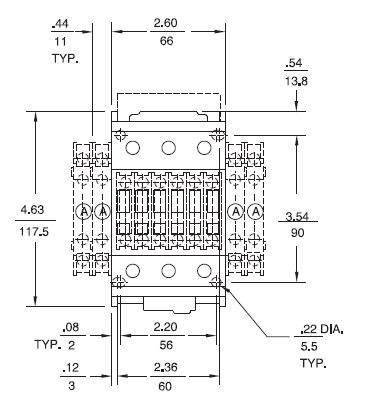

Click here for a catalog page of this GE Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
51520255060110683000CL08E300MJ110-127 AC/DC
