Square D / Telemecanique  |  SKU: CAD50

CAD50

$65.92
Shipping calculated at checkout.

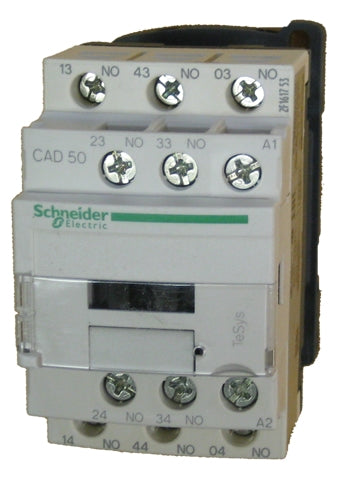

CAD50 Schneider Electric 5 pole, 10 AMP relay with an AC rated coil (must specify voltage below) -- comes with 5 N.O. contacts - DIN rail mounted - Suitable replacement for the CA2DN40

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this relay

Ships same day up until 4 p.m. EST

5-7 days for item to ship for standard delivery

BS 4794 EN 60947-5 IEC 60947-5-1 NF C 63-140 VDE 0660

Easily Installed Accessories Auxiliary contact blocks with serrated wiping action Front mount dust tight auxiliary contact blocks Pneumatic time delay blocks Transient voltage surge suppressors Interface modules and electronic timers Mechanical latching blocks

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Schneirder Electric CAD32 600 volt relays are approved for use around the world. TeSys D relays can be mounted on standard 35 mm DIN rail but can also be mounted directly to a panel. The fixed contacts in these relays have a NEMA A600 and Q600 ratings, in addition to the standard IEC ratings, making them suitable for use in most any control circuit. Top and side mounted auxiliary contacts can be added to a basic five pole relay to make it up to an 11 pole. Special auxiliary contacts are available for switching low power down to 5 volts at 10 mA. Timer and mechanical latch attachments are available.
