Sprecher + Schuh | SKU:
CA8-09-10-240
30% off
CA8-09-10-240
$69.38
$99.00
Unit price
/
Unavailable
Shipping calculated at checkout.

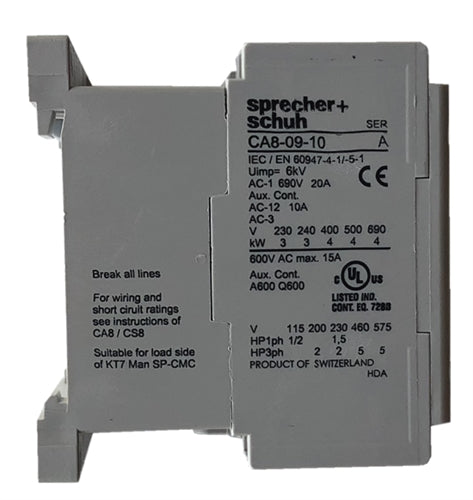

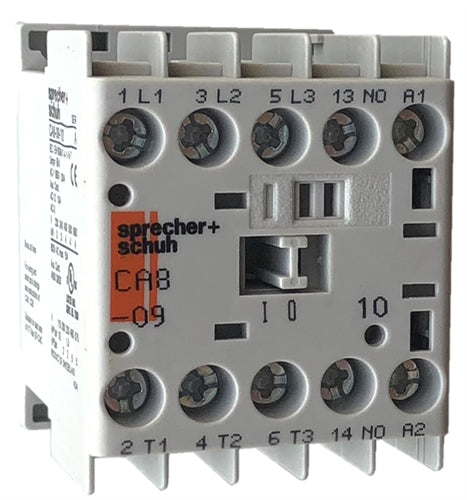

Sprecher + Schuh CA8-09-10-240 3-pole, 9 AMP miniature contactor with a 240 volt AC rated coil and 1 normally open base contact. Rated 2 H.P @ 230 volt, 5 H.P. @ 460 volt 3 Phase and can be base mounted or snapped onto 35mm DIN rail.
Out of Stock - Can ship in 2-3 weeks
CA8-09-10-240 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
CA8-09-10-240
$69.38
$99.00
Unit price
/
Unavailable
Sprecher + Schuh’s CA8-09-10 Series of miniature contactors and starters provide an extremely compact and reliable method of controlling motors of 7.5 HP or less. The CA8 is an economical choice for applications where space is limited or where a minimal enclosure is desired.
The entire CA8 System is logically engineered. Modular accessories like auxiliary contact blocks snap-on without increasing the CA8’s original width of 45MM. Also, due to its horizontal switching movement, the basic contactor has the same low profile whether an AC or DC operating magnet is used. This permits the use of enclosures with shallow mounting depths. Once the contactor is installed, all auxiliary contact blocks can be snapped-on or removed without changing any existing power wiring. Other accessories include a snap-on RC Link (surge suppressor), mechanical interlocks and space saving adapters for connecting auxiliary components.
The entire CA8 System is logically engineered. Modular accessories like auxiliary contact blocks snap-on without increasing the CA8’s original width of 45MM. Also, due to its horizontal switching movement, the basic contactor has the same low profile whether an AC or DC operating magnet is used. This permits the use of enclosures with shallow mounting depths. Once the contactor is installed, all auxiliary contact blocks can be snapped-on or removed without changing any existing power wiring. Other accessories include a snap-on RC Link (surge suppressor), mechanical interlocks and space saving adapters for connecting auxiliary components.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 0.5 | 1.5 | 2 | 2 | 5 | 5 | 9 | 20 | 3 | 0 | 1 | 0 | CA8-09-10-240 | 240 volt |
