Eaton / Cutler Hammer  |  SKU: C25DNJ350B
42% off

C25DNJ350B

$173.51 $300.90
Shipping calculated at checkout.

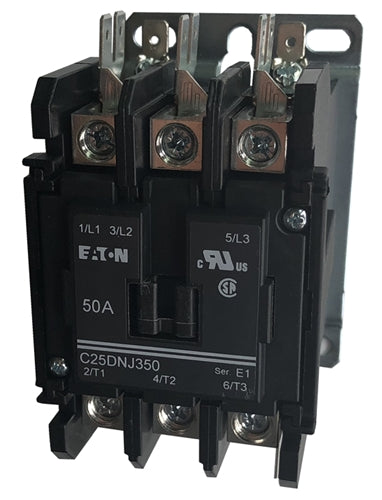

Eaton / Cutler Hammer C25DNJ350B Definite Purpose contacter - 3 pole - 50 AMP - 200-220v50Hz/208-240v60Hz AC coil - mounting plate

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

C25DNJ350B Datasheet

Country of Origin : China
Schedule B / H.T.S. : 8536.49.0065



Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

UL Recognized Components UL File #E-1491, Guide NLDX2 UL recognized, CSA certified and conform to ARI 780 CSA Certified Components File #LR353, Class 3211 04, 481301 and 122201 IEC 60947-4-1 EN 60947-4-1 CE mark RoHS Compliance(15A to 50A and 90A)

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

While Definite Purpose contactors were originally designed for the HVACR industry, over the years their use has expanded to many other market segments. If a customer has an application that heats, cools, refrigerates, controls of moves air, then they are probably a good candidate for Eaton's line of C25 DP contactors and starters.

Within the Air-Conditioning segment of motor controls, DP contactors can be grouped into two segments, Compact one and two pole DP contactors from 20 AMPS to 40 AMPS and Standard frame models that range from 15 AMP up to 260 AMP.

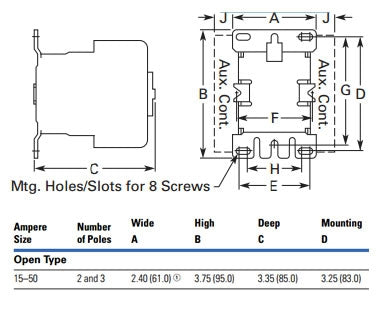

Click here for a catalog page of this C25D Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
3101010202050653000C25DNJ350A200-220v50Hz/208-240v60Hz
