Eaton / Cutler Hammer  |  SKU: C25DNF340
70% off

C25DNF340

$82.36 $276.77
Shipping calculated at checkout.

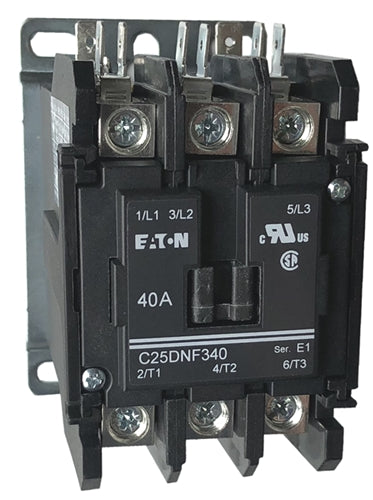

Eaton / Cutler Hammer C25DNF340 Definite Purpose contacter - 3 pole - 40 AMP - AC coil - mounting plate - double quick connect terminals - for use in HVAC, heating and cooling applications

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Stock - Can ship today if ordered prior to 4 p.m. EST

UL Recognized Components UL File #E-1491, Guide NLDX2 UL recognized, CSA certified and conform to ARI 780 CSA Certified Components File #LR353, Class 3211 04, 481301 and 122201 IEC 60947-4-1 EN 60947-4-1 CE mark RoHS Compliance(15A to 50A and 90A)

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

While Definite Purpose contactors were originally designed for the HVACR industry, over the years their use has expanded to many other market segments. If a customer has an application that heats, cools, refrigerates, controls of moves air, then they are probably a good candidate for Eaton's line of C25 DP contactors and starters.

Within the Air-Conditioning segment of motor controls, DP contactors can be grouped into two segments, Compact one and two pole DP contactors from 20 AMPS to 40 AMPS and Standard frame models that range from 15 AMP up to 260 AMP.
Click here for a catalog page of this C25D Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
37.51010202040503000C25DNF340
