BF1201A57560
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Catalog Page / Specifications
Out of Stock - Can ship in 1-2 days
BF1201A57560 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

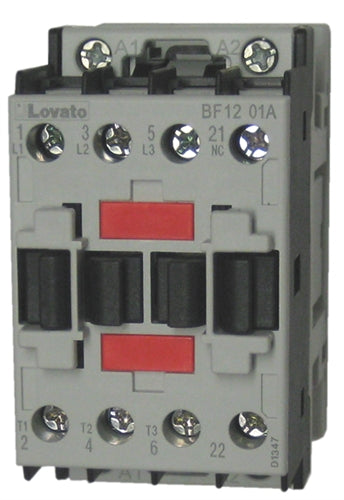

BF1201A57560
The Lovato Electric line of BF IEC 3 pole contactors can be divided into three basic configurations based on frame size, contact arrangement and coil voltages. Each of these features are all designed for long life and have finger safe terminal protection. These contactors are manufactured at the Lovato plant in Italy, which is ISO-9001 certified and is upheld to the highest standards. Each Lovato contactor is designed for durability, long-life expectancy and successful operation each time.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 1 | 2 | 5 | 5 | 7.5 | 10 | 12 | 28 | 3 | 0 | 0 | 1 | BF1201A57560 | 575v60Hz |
