Eaton / Cutler Hammer  |  SKU: AN16AN0EC
43% off
New arrival

AN16AN0EC

$372.66 $655.80
Shipping calculated at checkout.

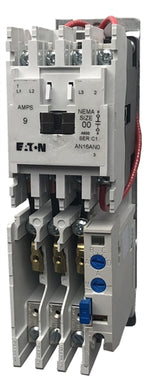

Eaton / Cutler Hammer AN16AN0EC NEMA Size 00 9 AMP Starter is rated for 2 H.P. @ 460 volt 3 Phase, 208v60Hz AC coil, has a bimetallic overload relay that has manual or automatic reset (heater packs are required and sold separately) and has a side mounted normally open auxiliary contact

AN16AN0EC Datasheet

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Ships today if ordered before 4 p.m. EST

Selectable manual or automatic reset operation Interchangeable heater packs adjustable ±24% to match motor FLA and calibrated for 1.0 and 1.15 service factors. Heater packs for smaller overload relay will mount in larger overload relay— useful in derating applications such as jogging Load lugs built into relay base Single-phase protection, Class 20 or Class 10 trip time Overload trip indication Electrically isolated NO-NC contacts (pull RESET button to test) Sizes 00–3 have a NO auxiliary contact block mounted on right-hand side (on Size 00, contact occupies 4th power pole position—no increase in width)

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Eaton AN16AN0EC Freedom Series NEMA rated starters feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. Adjustable bimetallic ambient compensated overload relays with interchangeable heater packs—available in three basic sizes, covering applications up to 900 hp—reducing the number of different contactor/overload relay combinations that have to be stocked. These three-phase, full voltage non-reversing magnetic starters are most commonly used to switch AC motor loads. Starters consist of a magnetically actuated switch (contactor) and an overload relay assembled together.

Click here for a catalog page on the AN16 NEMA Starter
