8910DPA22V09

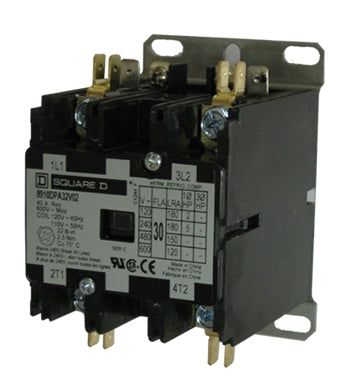

Schneider Electric offers a line of 2-, 3- and 4-pole definite purpose contactors from Square D that range from 20 up to 60 AMPS. Each contactor has a compact frame size to fit in many HVAC, data processing and food service equipment applications. With the ease of double quick connect terminals, these contactors are a hassle free install and can greatly reduce the costs of installation and purchasing to save you money.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 2 | 5 | 10 | 10 | 15 | 20 | 25 | 35 | 2 | 0 | 0 | 0 | 8910DPA22V09 | 208-240vAC |
