Siemens | SKU:
3RV2031-4JB10
48% off
3RV20314JB10
$198.74
$379.00
Unit price
/
Unavailable
Shipping calculated at checkout.

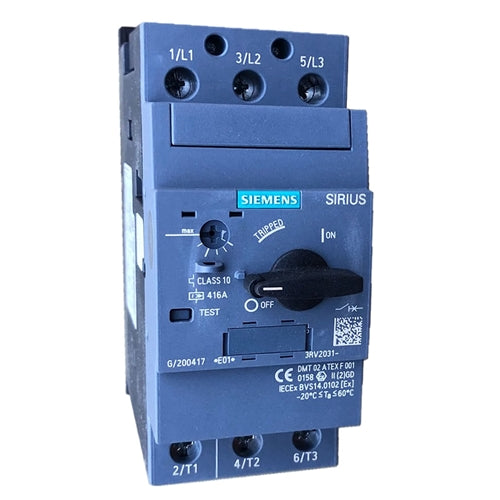

Siemens 3RV2031-4JB10 Manual Motor Starter/Overload Protector that is adjustable from 54-65A, mounts on DIN rail and has a Class 20 tripping characteristic.
3RV2031-4JB10 Datasheet
3RV2031-4JB10 Datasheet
Ships same day up until 4 p.m. EST
5-7 days for item to ship for standard delivery
ON/OFF rotary handle with lockout and visible trip indication.
Adjustment dial for setting to motor FLA.
Class 10 overload trip characteristics.
Short circuit trip at 13 times the maximum setting of the FLA adjustment dial.
Short circuit current rating:
Ambient compensated up to 140° F (applies to side by side mounting).
Phase loss sensitivity.
Test trip function.
3RV20314JB10 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
3RV20314JB10
$198.74
$379.00
Unit price
/
Unavailable
The 3RV2031 MSP’s are UL approved as Self Protected Combination Motor Controllers which are also called Type E. In this application, all the required functions for a motor branch are provided in one device: disconnect, short circuit protection, motor control and overload protection. A type E terminal adaptor is required for all S2 frame 3RV2031 above 45A and all S2 frame as well as for all S3 frame motor starter protectors. These manual motor starters are also approved for use as follows:
– Manual Motor Controller: Motor starter, motor disconnect, control and overload protection.
– Group Installation: Motor starter only, motor disconnect, control and overload protection.
– Tap conductor Protection in Group Installation acc. NEC: Motor starter only; motor disconnect, control and overload protection.
When the 3RV is used with one of the 3 above mentioned approvals, they can be installed downstream of one circuit breaker or fuse set.
– Manual Motor Controller: Motor starter, motor disconnect, control and overload protection.
– Group Installation: Motor starter only, motor disconnect, control and overload protection.
– Tap conductor Protection in Group Installation acc. NEC: Motor starter only; motor disconnect, control and overload protection.
When the 3RV is used with one of the 3 above mentioned approvals, they can be installed downstream of one circuit breaker or fuse set.
