Siemens  |  SKU: 3RV1021-1KA15

3RV1021-1KA15

$0.00
Shipping calculated at checkout.

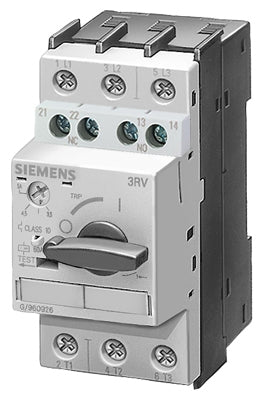

Siemens 3RV1021-1KA15 Manual Motor Starter/Overload Protector that is adjustable from 9-12.5A, mounts on DIN rail and has a Class 10 tripping characteristic. -- Comes preinstalled with 3RV1901-1E front mounted auxiliary contact with 1 NO and 1 NC contact set

Need a slightly lower AMP range? Click here to see the 3RV1021-1JA15.
Need a slightly higher AMP range? Click here to see the 3RV1021-4AA15.

3RV1021-1KA15 Datasheet

Obsolete - No Availability from Siemens

ON/OFF rotary handle with lockout and visible trip indication. Adjustment dial for setting to motor FLA. Class 10 overload trip characteristics. Short circuit trip at 12 times the maximum setting of the FLA adjustment dial. Short circuit current rating: Ambient compensated up to 140° F (applies to side by side mounting). Phase loss sensitivity. Test trip function.

siemens logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The 3RV1021 MSP’s can be used as Type E self-protected manual combination starters per UL508 (3RV1021 require additional terminal adapers) or as components in Group Installation per NEC 430-53(C) to turn motors on and off. Each device has built-in heater elements that provide overload protection and magnetic trip elements to protect the motor. When the 3RV is used as a component in Group Installation, multiple MSP’s can be installed below one circuit breaker to protect its own motor. A contactor can be mounted to the MSP to provide a remotely operated starter.

Click here for a catalog page of this 3RV1 Manual Motor Protector
