Siemens  |  SKU: 3RT2047-1AP60
65% off

3RT2047-1AP60

$387.11 $1,116.00
Shipping calculated at checkout.

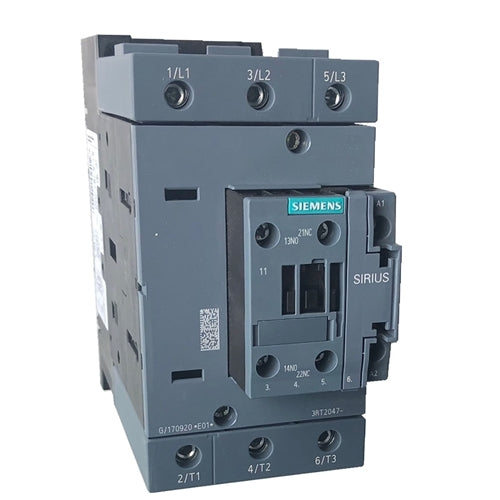

Siemens 3RT2047-1AK60 contactor that is rated for 110 AMPS and 75 H.P. @ 460v Three phase and a 110v50Hz/120v60Hz coil. Comes with 1 normally open and 1 normally closed base contact and screw terminals

Catalog Page / Specifications

Out of Stock - Can ship in 2-3 weeks

3RT2047 contactors are finger-safe according to EN 50274. The devices with ring terminal lug connection comply with degree of protection IP20 when fitted with the related terminal cover. All contactors of size S2 with two auxiliary contacts (1 N.O. and 1 N.C.) and the contactors with 4 main contacts can be expanded into contactors with 2 to 5 auxiliary contacts using auxiliary switch blocks with the identification numbers 40 to 04.

siemens logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Siemens Size S3 contactors have an auxiliary contact integrated in the basic unit. The basic units size S3 contain two integrated auxiliary contacts (1 NO + 1 NC). All basic units can be expanded with auxiliary switch blocks. For size S3 and higher, complete units with 2 NO + 2 NC are available (terminal designation according to EN 50012). The auxiliary switch block can be removed and a maximum of 4 additional auxiliary contacts can be attached. 3RU2146 thermal overload relays or 3RB3046 solid-state overload relays can be fitted to the 3RT2047 contactors for protection against overload.

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
10
20
30
40
75
100
130
110
30113RT2047-1AP60240V AC
