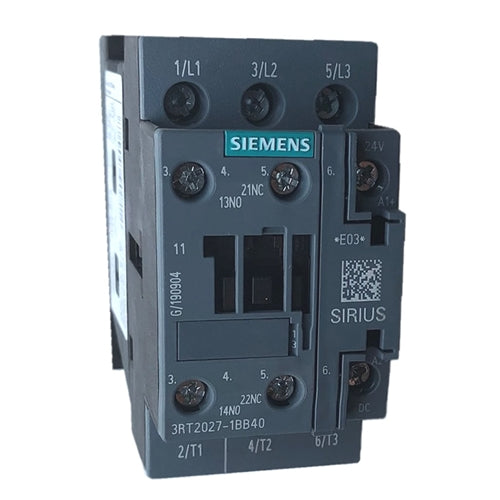

3RT2027-1BB40
The Siemens Size S0 contactors have an auxiliary contact integrated in the basic unit. The basic units size S0 contain two integrated auxiliary contacts (1 NO + 1 NC). All basic units can be expanded with auxiliary switch blocks. For size S0 and higher, complete units with 2 NO + 2 NC are available (terminal designation according to EN 50012). The auxiliary switch block can be removed and a maximum of 4 additional auxiliary contacts can be attached. 3RU21 thermal overload relays or 3RB30 solid-state overload relays can be fitted to the 3RT2 contactors for protection against overload.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 3 | 7.5 | 7.5 | 10 | 20 | 25 | 32 | 50 | 3 | 0 | 1 | 1 | 3RT2027-1BB40 | 24V DC |
