3RT1066-6A

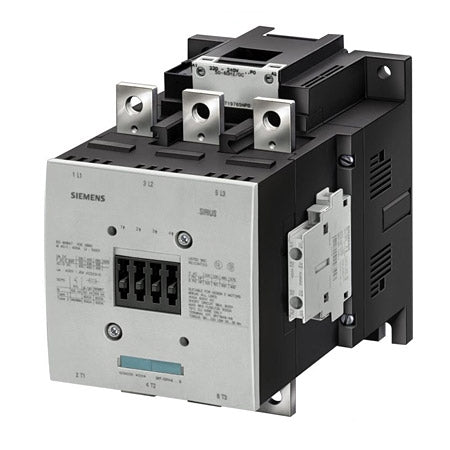

Siemens 3RT1066-6A..6 contactor that is rated for 300 AMPS and 250 H.P. @ 460v Three phase. Comes with two side mounted auxiliary contacts (3RH1921-1DA11) with 1 N.O. and 1 N.C. contact set each. Please note box lug terminals for wired screw connection need to be ordered separately.
Catalog Page / Specifications
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
Siemens Size S10 contactor Can be fitted with any 1-, 2- or 4-pole 3RH1921 auxiliary contactor for up to 4 additional contacts For motor protection a 3RB2066 Solid State overload relay can be directly mounted This contactor comes with screw termination - please call for spring/cage clamp terminals The Sirius line can be fitted with optional varistors, surge suppressors or RC elements
3RT1066-6A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
3RT1066-6A
The Siemens Sirius line of 3RT1066-6A contactors are suitable for use wherever a 3 pole, IEC, UL and CSA rated contactor is appropriate. This size S10 contactor is used in applications up to 75 horsepower at 460v for three phase applications. Additional auxiliary contacts, up to four poles, can be added on the top or side of the contactor. In addition to auxiliary contact blocks, thermal magnetic or solid state overload relays can be added to these Siemens contactors to provide full motor starter protection in the case of an over amperage situation. For mounting purposes, the contactors can either be mounted directly on standard 35mm DIN rail or screwed directly onto the back of the panel or mounting plate.
Click here for a catalog page of this 3RT1066 contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| - | - | 100 | 125 | 250 | 300 | 330 | 300 | 3 | 0 | 2 | 2 | 3RT1066-6A | |
