3RT1026-1A

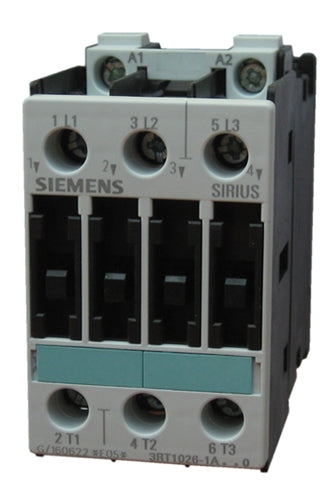

Siemens 3RT1026-1A contactor that is rated for 25 AMPS and 15 H.P. @ 460v Three phase and an AC rated coil
(must specify voltage below). Comes with screw terminals and can be mounted on DIN rail
Catalog Page / Specifications

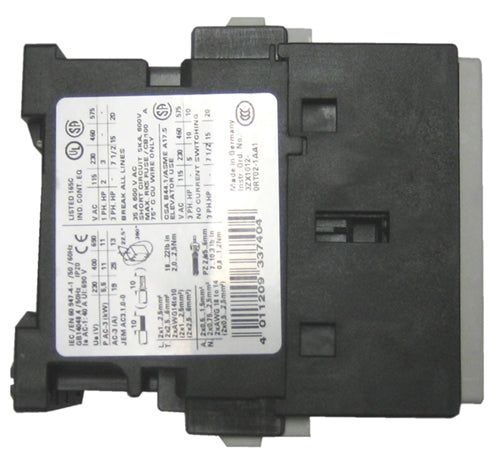

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Country of Origin : Germany
H.T.S. Code : 8536.49.0065
Obsolete - No Availability from Siemens
Siemens Size S0 contactor Can be fitted with any 1-, 2- or 4-pole 3RH1921 auxiliary contactor for up to 4 additional contacts For motor protection a 3RU1126 thermal overload or 3RB2026 Solid State overload relay can be directly mounted Mounts on standard 35mm DIN rail or can be screw mounted This contactor comes with screw termination - please call for spring/cage clamp terminals The Sirius line can be fitted with optional varistors, surge suppressors or RC elements
3RT1026-1A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
The Siemens Sirius line of 3RT1026-1A contactors are suitable for use wherever a 3 pole, IEC, UL and CSA rated contactor is appropriate. This size S0 contactor is used in applications up to 15 horsepower at 460v for three phase applications. Additional auxiliary contacts, up to four poles, can be added on the top or side of the contactor. In addition to auxiliary contact blocks, thermal magnetic or solid state overload relays can be added to these Siemens contactors to provide full motor starter protection in the case of an over amperage situation. For mounting purposes, the contactors can either be mounted directly on standard 35mm DIN rail or screwed directly onto the back of the panel or mounting plate.
Click here for a catalog page of this 3RT1026 contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 2 | 3 | 7.5 | 7.5 | 15 | 20 | 25 | 40 | 3 | 0 | 0 | 0 | 3RT1026-1A | |
