3RP2505-1AW30

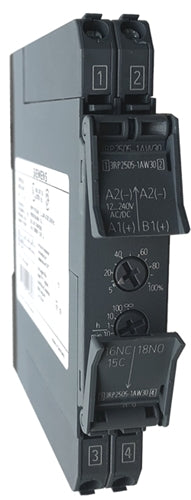

Siemens 3RP2505-1AW30 electronic 13 function timing relay adjustable from 0.05s to 100h and operates at 12-240 V AC/DC - Mounts on standard 35mm DIN Rail, has screw terminals and 1 Changeover contact
Catalog Page / Specifications
Out of Stock - Can ship in 2-3 weeks
IEC 60 721-3-3 "Environmental conditions" IEC 61 812-1/DIN VDE 0435 Part 2021 "Electrical relays, time relays" IEC 61 000-6-2/EN 50 081-1 "Electromagnetic capability" IEC 60 947-5-1; DIN VDE 0660 Part 200 "Low-voltage switchgear and controlgear" The same potential must be applied to A1 and B1, or A3 and B3 With the two-voltage version, only one voltage range must be connected The activation of loads parallel to the start input is not permissible when using AC control voltage
3RP2505-1AW30 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
3RP2505-1AW30
The functions of the 3RP2505 multi-functional timing relays can be set by means of the function selector switch. Whether both CO contacts are switched in parallel or one CO contact with a delay and one instantaneously and the choice of time setting range are set by means of the time setting range selector switch. The exact operating time can be adjusted with the operating time switch. With a set of foil labels the timing relay can be legibly marked with the functions which can be selected on the timing relay. This is supplied together with the multi-functional timing relay.
- A - ON-delay
- B - OFF-delay with control signal
- C - ON-delay/OFF-delay with control signal
- D - Flashing, symmetrical, starting with interval
- E - Passing make contact, interval relay
- F - Retriggerable interval relay with deactivated control signal (passing break contact with control signal)
- G - Passing make contact, with control signal, not retriggerable (pulse-forming with control signal)
- H - Additive ON-delay, instantaneous OFF with control signal
- I - Additive ON-delay with control signal
- J - Flashing, symmetrical, starting with pulse
- K - Pulse-delayed (fixed pulse (at 1 s) and settable pulse delay)
- L - Pulse-delayed with control signal (fixed pulse (at 1 s) and settable pulse delay)
- M - Retriggerable interval relay with activated control signal (watchdog)
