Siemens | SKU:
3RB3016-1PB0
16% off
3RB3016-1PB0
$85.30
$102.00
Unit price
/
Unavailable
Shipping calculated at checkout.

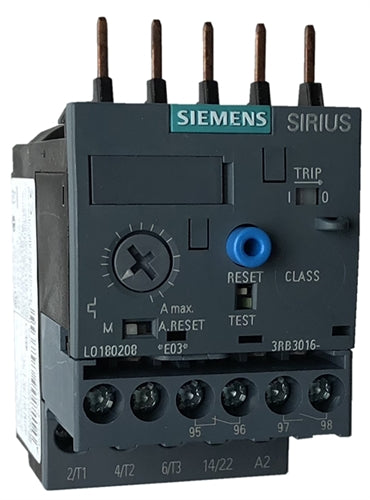

Siemens 3RB3016-1PB0 solid state overload relay that adjusts from 1 to 4 AMPS, is rated for Class 10 tripping, mounts directly to any 3RT2015, 3RT2016, 3RT2017 or 3RT2018 3-pole contactor, has a manual and automatic reset along with a set of 1 N.O. and 1 N.C. auxiliary contacts.
Stock - Can ship today if ordered prior to 4 p.m. EST
Overload protection, phase failure protection and unbalance
protection
Internal power supply
Auxiliary contacts 1 NO + 1 NC
Manual and automatic RESET
Switch position indicator
TEST function and self-monitoring
3RB3016-1PB0 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
3RB3016-1PB0
$85.30
$102.00
Unit price
/
Unavailable
The new Siemens 3RB3016 overload relays are used for protecting motors in three ways: protection of loads from phase failure, from complete phase loss and AMP overloading for an extended period of time (time dependent on class setting of overload). They provide electronic protection that is superior to their thermal overload counterparts and also provide a wide range of AMP settings that reduces inventory and increases usability.
Each Siruis 3RB3 overload has two auxiliary contacts for trip indicating status, a TEST button, a RESET button along with a trip indication window for visual notification that the unit has entered a tripped state. These overloads mount directly to any Siemens 3RT2 size S00 contactor, which includes contactors ranging from the 3RT2015 to the 3RT2018 3 pole contactors.
Each Siruis 3RB3 overload has two auxiliary contacts for trip indicating status, a TEST button, a RESET button along with a trip indication window for visual notification that the unit has entered a tripped state. These overloads mount directly to any Siemens 3RT2 size S00 contactor, which includes contactors ranging from the 3RT2015 to the 3RT2018 3 pole contactors.
