3RA2335-8XB30-1AP6

Name: 3RA2335-8XB30-1AP6
Brand: Siemens
SKU: 3RA2335-8XB30-1AP6
Price: 275.59 USD
Availability: InStock

$275.59 $560.00

Shipping calculated at checkout.

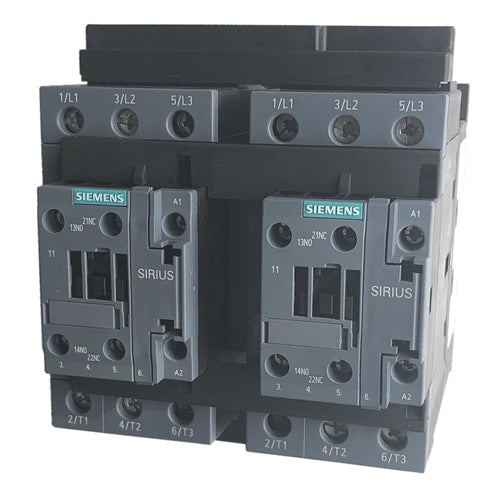

Siemens Sirius 3RA2335-8XB30-1AP6 40 AMP reversing contactor with a 220v50Hz/240v60Hz AC rated coil, screw terminals and mounts on standard 35MM din rail. Complete with mechanical interlock and wiring harnesses, this Siemens reversing contactor is rated for 15 H.P. @ 23 volt and 30 H.P. @ 460 volt 3 phase and is suitable for forward/reversing applications.

As the suitable electrical replacement for the now obsolete 3RA1335-8XB30-1AP6, the 3RA2335-8XB30-1AP6 comes with additional auxiliary contacts, 1 normally open and 1 normally closed, and additional thermal or solid state overload relays along with front or side mounted auxiliary can be added for increased motor protection and signalling

Stock - Can ship today if ordered prior to 4 p.m. EST

Electrical specifications
Dimensions
Technical data

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

These Siemens reversing assemblies are comprised of two electrically identical contactors, in this case two 3RT2035-1AP60 rated for 40 AMPS each. They are mechanically held through an interlock that is installed between the two contactors which physically prevents one contactor from engaging while the other coil is actuated. The electrical interlock provided connects the two normally closed auxiliaries and prevents electrical engagement at the same time. For motor protection a direct mount electronic or thermal overload must be attached to satisfy this requirement.

Country of Origin : Germany
H.S. Code : 8536.49.0065
REACH and RoHS compliant
