Siemens | SKU:
3RA2323-8XB30-1AC2
21% off
3RA2323-8XB30-1AC2
$189.63
$240.00
Unit price
/
Unavailable
Shipping calculated at checkout.

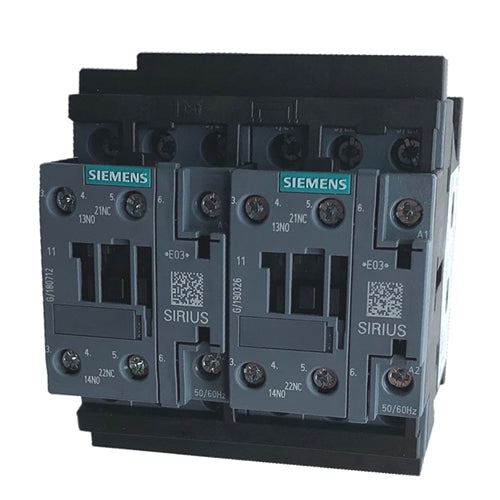

Siemens Sirius 3RA2323-8XB30-1AC2 9 AMP reversing contactor with a 24v50/60Hz AC rated coil, screw terminals and mounts on standard 35MM din rail. Complete with mechanical interlock and wiring harnesses, this Siemens reversing contactor is rated for 3 H.P. @ 230 volt and 5 H.P. @ 460 volt 3 phase and is suitable for forward/reversing applications.
As the suitable electrical replacement for the now obsolete 3RA1323-8XB30-1AC2, the 3RA2323-8XB30-1AC2 comes with two additional auxiliary contacts, 1 normally open and 1 normally closed, and additional thermal or solid state overload relays along with front or side mounted auxiliary can be added for increased motor protection and signalling
As the suitable electrical replacement for the now obsolete 3RA1323-8XB30-1AC2, the 3RA2323-8XB30-1AC2 comes with two additional auxiliary contacts, 1 normally open and 1 normally closed, and additional thermal or solid state overload relays along with front or side mounted auxiliary can be added for increased motor protection and signalling
Stock - Can ship today if ordered prior to 4 p.m. EST
3RA2323-8XB30-1AC2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
3RA2323-8XB30-1AC2
$189.63
$240.00
Unit price
/
Unavailable

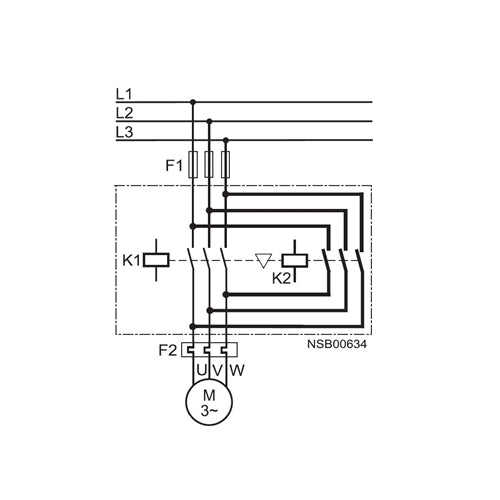

These Siemens reversing assemblies are comprised of two electrically identical contactors, in this case two 3RT2023-1AC20 rated for 9 AMPS each. They are mechanically held through an interlock that is installed between the two contactors which physically prevents one contactor from engaging while the other coil is actuated. The electrical interlock provided connects the two normally closed auxiliaries and prevents electrical engagement at the same time. For motor protection a direct mount electronic or thermal overload must be attached to satisfy this requirement.
Country of Origin : Germany
H.S. Code : 8536.49.0065
REACH and RoHS compliant
H.S. Code : 8536.49.0065
REACH and RoHS compliant
