Allen Bradley | SKU:
193-1EFAB
5% off
193-1EFAB
$92.26
$97.00
Unit price
/
Unavailable
Shipping calculated at checkout.

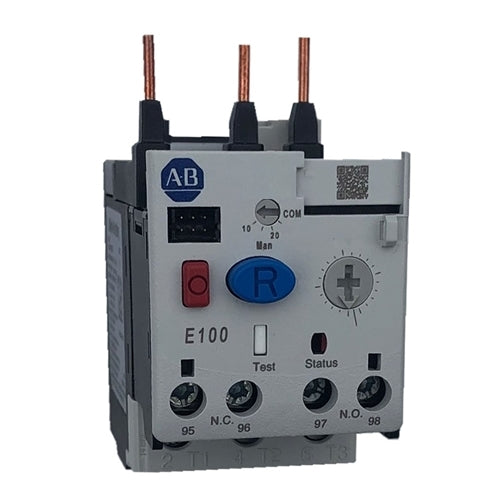

Allen Bradley 193-1EFAB electronic overload relay that is adjustable from 0.1 to 0.5 AMPS, has a manual or automatic reset and mounts directly to any 100-C09 through 100-C23 3 pole contactor. These solid state overload relays come with phase loss protection (single phase sensitivity), Class 10 through Class 30 trip selection and are a exact electrical and physical replacement for the 193-EEAB. Two auxiliary contacts, one normally open alarm contact and one normally closed trip contact are included in the 193-1EFAB for complete motor protection.
Out of Stock - Can ship in 2-3 weeks
IMC-Direct is not an authorized Rockwell Automation distributor
This product does not come with a Rockwell Automation warranty
IEC Operating Voltage : 690 volt
Trip Class (Adjustable) : 10, 15, 20, 30
Reset Type : Manual or Automatic
Phase Loss protection
N.C. Trip Contact
N.O. Alarm Contact
Screw Terminals
Trip Class (Adjustable) : 10, 15, 20, 30
Reset Type : Manual or Automatic
Phase Loss protection
N.C. Trip Contact
N.O. Alarm Contact
Screw Terminals
193-1EFAB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
193-1EFAB
$92.26
$97.00
Unit price
/
Unavailable
Allen Bradley now offers the new E100 series of electronic overload protection with far superior motor protection technology than any existing overload relay in the market today. These solid state relays more precisely measure a motor's current load, analyze its temperature and instantaneously cuts power to the motor, thus preventing costly equipment damage due to overheating.
This new E100 series offers two categories of overloads: the basic category (193-1EE), which offers adjustable AMP ranges, Class 10 or Class 20 protection but only a manual reset option. The advanced category (193-1EF) also offers adjustable AMP ranges in addition to Class 10 through Class 30 trip selection and both manual and automatic resets. The 193-1EF series also comes with optional accessories, such as external reset adapters, DIN rail/panel mount brackets and electronic remote indication displays.
This new E100 series offers two categories of overloads: the basic category (193-1EE), which offers adjustable AMP ranges, Class 10 or Class 20 protection but only a manual reset option. The advanced category (193-1EF) also offers adjustable AMP ranges in addition to Class 10 through Class 30 trip selection and both manual and automatic resets. The 193-1EF series also comes with optional accessories, such as external reset adapters, DIN rail/panel mount brackets and electronic remote indication displays.
