11B14500 024
Lovato 11B145 00024 3 pole 150 AMP contactor with a 24V AC rated coil - Rated for 50 H.P @ 230 volt, 100 H.P. @ 460 volt 3 Phase - UL and IEC rated
Catalog Page / Specifications
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
11B14500 024 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
11B14500 024
The Lovato line of B contactors is compact, reliable and has a wide range of accessories to fit any electrical need. Each contactor can be outfitted with up to 3 auxiliary contact blocks to give you an additional 8 poles. Also, an overload relay can be directly mounted to the load side of each B series contactor or wired separately via a panel mounted overload. These Lovato contactors are UL, IEC and CSA certfied to be used in any application in North America.

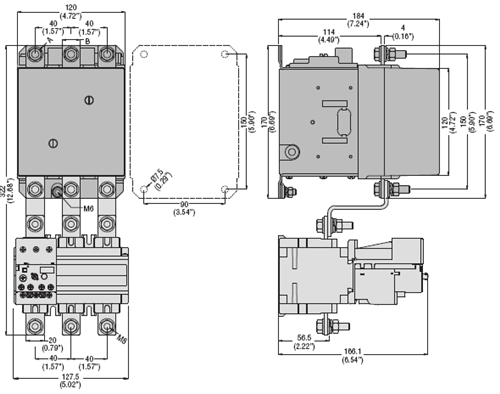

Click here for a catalog page of this Lovato B series contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| - | - | 50 | 50 | 100 | 120 | 220 | 150 | 3 | 0 | 0 | 0 | 11B14500024 | 24vAC |
