Allen Bradley | SKU:
100-C85H01
22% off
100-C85H01
$406.73
$521.00
Unit price
/
Unavailable
Shipping calculated at checkout.

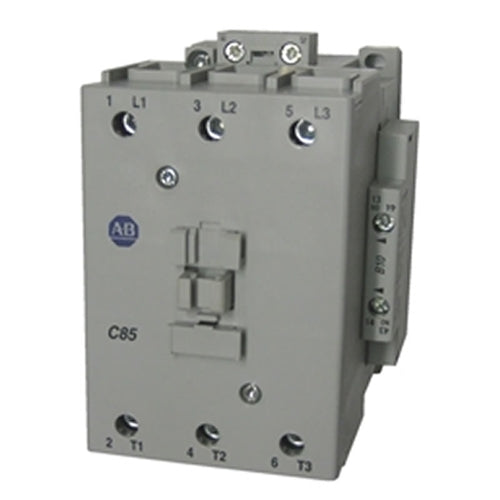

The Allen Bradley 100-C85H01 is a 3 pole 85 AMP contactor with a 208v60Hz AC rated coil and a side mounted single pole auxiliary with 1 normally closed contact. This UL/IEC contactor is rated for 30 horsepower at 230 volt and 60 horsepower at 460 volt 3 phase, has screw terminals and DIN rail mounting for easy installation. Multiple accessories are available for the 100-C85H01 contactor such as side mounted auxiliaries and electronic overload relays for complete motor protection.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Out of Stock - Can ship in 2-3 weeks
IMC-Direct is not an authorized Rockwell Automation distributor
This product does not come with a Rockwell Automation warranty
100-C85H01 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
100-C85H01
$406.73
$521.00
Unit price
/
Unavailable
The Allen Bradley Bulletin 100-C IEC contactor family, along with a wide range of common accessories and Bulletin 193 solid-state overload relays, provides the most compact and flexible starter component system available. These Allen Bradley 3 pole contactors have the most compact frame size in the industry and along with the ability to rotate the coil installation for connections on either the line or load side make these contactors the most versatile and easy to install in the market today.
A wide range of auxiliary contacts are available, from 2 and 4 pole that are either top mount or snap onto the side for reduced height. The 100-C also offers either thermal or solid state (electronic) overload protection from Class 10 to Class 30 tripping characteristic, all of which direct mount to the load side of these contactors.
A wide range of auxiliary contacts are available, from 2 and 4 pole that are either top mount or snap onto the side for reduced height. The 100-C also offers either thermal or solid state (electronic) overload protection from Class 10 to Class 30 tripping characteristic, all of which direct mount to the load side of these contactors.
