Allen Bradley | SKU:
100-C12*01
46% off
100-C12*01
$94.37
$173.62
Unit price
/
Unavailable
Shipping calculated at checkout.

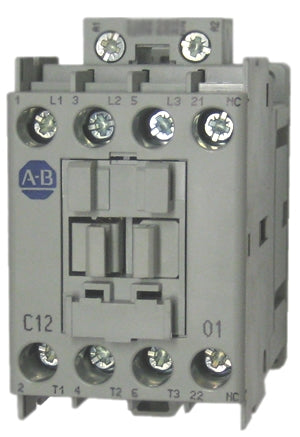

The Allen Bradley 100-C12*01 contactor is rated for 12 AMPS, 3 H.P at 230 volt and 7.5 H.P. at 460 volt 3-phase and has an AC rated coil (must specify coil voltage below). This UL/IEC rated contactor comes with 1 normally closed base mounted auxiliary contact, screw terminals, and fast installation with a DIN rail mounting option along with the traditional base mounting option. Front and side mounted auxiliaries are available for the 100-C12*01 along with thermal and electronic overload relays for complete motor protection.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this starter.
H.S. Code : 8536.49.0065
Country of Origin : Switzerland
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this starter.
H.S. Code : 8536.49.0065
Country of Origin : Switzerland
Stock - Can ship today if ordered prior to 4 p.m. EST
IMC-Direct is not an authorized Rockwell Automation distributor
This product does not come with a Rockwell Automation warranty
100-C12*01 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
100-C12*01
$94.37
$173.62
Unit price
/
Unavailable
The Allen Bradley series of 100-C contactors range from 9 to 97 AMPS in just 4 different compact frame sizes, starting at just 45MM for up to the 37 AMP frame size. Integrated auxiliary contacts are included from the 100-C09 up to the 100-C23 in either normally open or normally closed options, and side mounted auxiliaries can be added to the contactors from 30 AMP and above. The entire series uses the same front and side mounted auxiliaries, making the Allen Bradley 100-C series of accessories the most modular in the industry today.
Thermal and solid state (electronic) overloads are available that direct mount to each contactor for easy installation and removal. And with AMP ranges from 0.1 all the way up to 100 AMPS, these overloads with suit the current needs of any application up to 100 AMPS.
Thermal and solid state (electronic) overloads are available that direct mount to each contactor for easy installation and removal. And with AMP ranges from 0.1 all the way up to 100 AMPS, these overloads with suit the current needs of any application up to 100 AMPS.
