C25DNJ350B

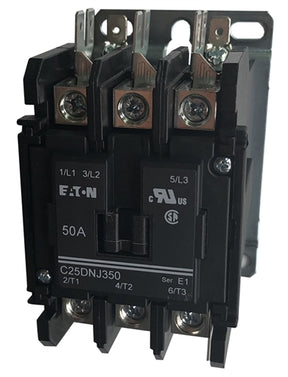

Eaton / Cutler Hammer C25DNJ350B Definite Purpose contacter - 3 pole - 50 AMP - 200-220v50Hz/208-240v60Hz AC coil - mounting plate
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
C25DNJ350B Datasheet
Country of Origin : China
Schedule B / H.T.S. : 8536.49.0065
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
UL Recognized Components UL File #E-1491, Guide NLDX2 UL recognized, CSA certified and conform to ARI 780 CSA Certified Components File #LR353, Class 3211 04, 481301 and 122201 IEC 60947-4-1 EN 60947-4-1 CE mark RoHS Compliance(15A to 50A and 90A)
C25DNJ350B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
C25DNJ350B
While Definite Purpose contactors were originally designed for the HVACR industry, over the years their use has expanded to many other market segments. If a customer has an application that heats, cools, refrigerates, controls of moves air, then they are probably a good candidate for Eaton's line of C25 DP contactors and starters.
Within the Air-Conditioning segment of motor controls, DP contactors can be grouped into two segments, Compact one and two pole DP contactors from 20 AMPS to 40 AMPS and Standard frame models that range from 15 AMP up to 260 AMP.
Click here for a catalog page of this C25D Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 3 | 10 | 10 | 10 | 20 | 20 | 50 | 65 | 3 | 0 | 0 | 0 | C25DNJ350A | 200-220v50Hz/208-240v60Hz |
