Eaton / Cutler Hammer  |  SKU: XTRM10A40R
67% off

XTRM10A40R

$50.21 $152.91
Shipping calculated at checkout.

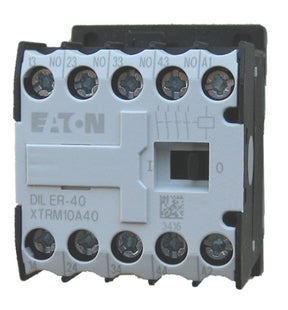

Eaton XTRM10A40R four pole miniature relay with 4 normally open base contacts and a 12v50/60Hz AC rated coil. These 4 pole miniature relays are rated for 10 AMPS, have screw terminals and can either be snapped onto 35MM din rail or screwed to the back panel. Two and four pole auxiliary contacts are available for the XTRM10A40R miniature relay that can total up to 8 poles of switching.

XTRM10A40R Datasheet

Out of Stock - Can ship in 1-2 weeks

IEC EN 60947 CE approved UL CSA CCC ATEX

eaton moeller logo

XTRM10A40R is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Eaton has developed a line of miniature relays that are the most compact 10 AMP, 4 pole relays offered today. With all possible contact configurations, 2 N.O./2 N.C., 3 N.O./1 N.C. and 4 N.O. you will find the XTRM relay that fits your needs. And with the addition of a 4-pole, top mount auxiliary, any combination is possible up to 8 poles. These relays snap onto standard DIN rail and come with screw termination for easy installation.

Click here for a catalog page of this XTRM Relay
