XTRE10B40D

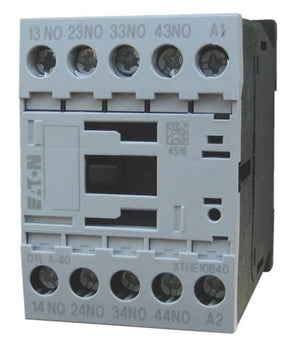

Eaton XTRE10B40D 10 AMP, 4-pole control relay with a 600v60Hz AC coil and 4 normally open poles. Each control relay comes with screw terminals and can be mounted on standard 35mm DIN rail or base mounted for easy installation. Additional front mounted auxiliary contact blocks can be added to the XTRE10B40D for up to 8 total contacts for switching. For different contact arrangements, you can try the XTRE10B22D (for 2 normally open and 2 normally closed) or the XTRE10B31D (for 3 normally open and1 normally closed) which also can be outfitted with different auxiliary contact blocks to reach any possible combination.

XTRE10B40D Datasheet

AC control from 12V to 550V 50 Hz, 600V 60 Hz DC control from 12V to 220V On-delay and multi function timers 24–240 Vac/Vdc control Available with screw or spring cage terminals Four-pole configurations IP20 finger and back-of hand proof
