Square D / Telemecanique | SKU:
LRD14L
17% off
LRD14L
$51.26
$62.00
Unit price
/
Unavailable
Shipping calculated at checkout.

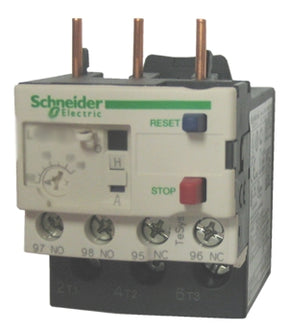

Schneider Electric LRD14L thermal overload relay - adjustable from 7 to 10 AMPS - phase loss protection (single phase sensitivity) - Class 20 tripping characteristic with manual and automatic resets along with 1 normally open (N.O.) and 1 normally closed (N.C.) auxiliary contacts. This 3-Phase thermal overload relay mounts to any LC1D09 through LC1D38 3-pole contactor in any coil voltage
Out of Stock - Can ship in 1-2 weeks
Installs directly onto LC1D contactors from the LC1D09 to the LC1D32 models
Automatic or Manual reset with Single phase sensitivity - phase loss protection
Class 20 trip characteristic
Base mounted auxiliary contact
LRD14L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
LRD14L
$51.26
$62.00
Unit price
/
Unavailable
The Schneider Electric LRD line of Class 10 bimetallic overload relays are available up to 140 A. They are bimetallic ambient compensated and are available with or without single-phase sensitivity for phase unbalance and phase loss protection. New solid state overload relays are available for 90 to 150 A applications. Both bimetallic and solid-state overload relays include the following features:
• Isolated N.C. trip contact and N.O. alarm contacts.
• Manual or Automatic reset function (bi-metallic versions only).
• Tamper-resistant window for FLA settings.
• Test trip button.
• Isolated N.C. trip contact and N.O. alarm contacts.
• Manual or Automatic reset function (bi-metallic versions only).
• Tamper-resistant window for FLA settings.
• Test trip button.
