Square D / Telemecanique  |  SKU: LRD12L
17% off

LRD12L

$51.26 $62.00
Shipping calculated at checkout.

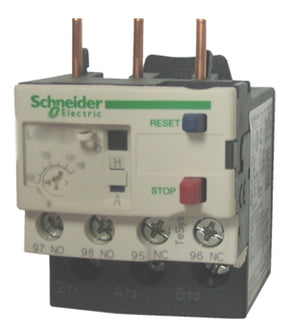

Schneider Electric LRD12L thermal overload relay - adjustable from 5.5 to 8 AMPS - phase loss protection (single phase sensitivity) - Class 20 tripping characteristic with manual and automatic resets along with 1 normally open (N.O.) and 1 normally closed (N.C.) auxiliary contacts. This 3-Phase thermal overload relay mounts to any LC1D09 through LC1D38 3-pole contactor in any coil voltage

Out of Stock - Can ship in 1-2 weeks

Degree of protection : Conforms to VDE 0106 Protective treatment : Conforms to IEC 60068 Short-circuit protection : By gG, BS or Class CC fuse Tripping Class : 20 Rated insulation voltage (Ui) : 690v Rated impulse withstand voltage (Uimp) : 6 Temperature compensation : -20 -> +60C, -68 -> 140F Tripping threshold : 1.14 ± 0.06 In Sensitivity to phase failure : Tripping current 30% of In on one phase, the others at In

Installs directly onto LC1D contactors from the LC1D09 to the LC1D32 models Automatic or Manual reset with Single phase sensitivity - phase loss protection Class 20 trip characteristic Base mounted auxiliary contact

LRD12L is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Schneider Electric LRD line of Class 10 bimetallic overload relays are available up to 140 A. They are bimetallic ambient compensated and are available with or without single-phase sensitivity for phase unbalance and phase loss protection. New solid state overload relays are available for 90 to 150 A applications. Both bimetallic and solid-state overload relays include the following features:

• Isolated N.C. trip contact and N.O. alarm contacts.
• Manual or Automatic reset function (bi-metallic versions only).
• Tamper-resistant window for FLA settings.
• Test trip button.
