Square D / Telemecanique | SKU:
LRD03
17% off
LRD03
$49.61
$60.00
Unit price
/
Unavailable
Shipping calculated at checkout.

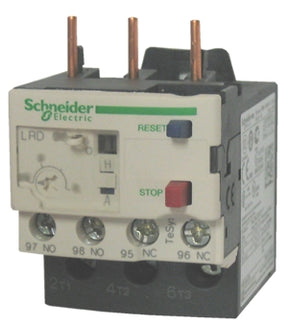

Schneider Electric LRD03 thermal magnetic overload relay - adjustable from 0.25- 0.40 AMPS
Suitable replacement for the LR2D1303 when the appropriate contactor is also replaced -- will not mount directly to the old style Telemecanique LC1D contactors
Suitable replacement for the LR2D1303 when the appropriate contactor is also replaced -- will not mount directly to the old style Telemecanique LC1D contactors
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
Installs directly onto LC1D contactors from the LC1D09 to the LC1D32 models
Automatic or Manual reset
Single phase sensitivity - phase loss protection
Class 10 trip characteristic
Base mounted auxiliary contact
LRD03 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
LRD03
$49.61
$60.00
Unit price
/
Unavailable
The Schneider Electric LRD03 line of Class 10 bimetallic overload relays are available up to 140 A. They are bimetallic ambient compensated and are available with or without single-phase sensitivity for phase unbalance and phase loss protection. New solid state overload relays are available for 90 to 150 A applications. Both bimetallic and solid-state overload relays include the following features:
• Isolated N.C. trip contact and N.O. alarm contacts.
• Manual or Automatic reset function (bi-metallic versions only).
• Tamper-resistant window for FLA settings.
• Test trip button.
• Isolated N.C. trip contact and N.O. alarm contacts.
• Manual or Automatic reset function (bi-metallic versions only).
• Tamper-resistant window for FLA settings.
• Test trip button.
