LC1D65A

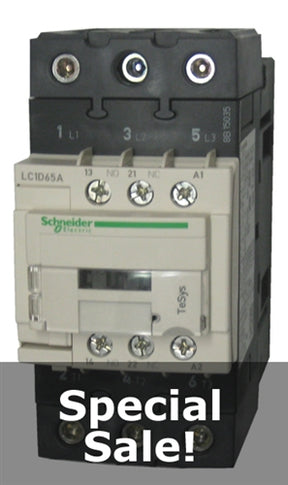

The Schneider Electric LC1D65A is a 65 AMP, 3 pole contactor with an AC rated coil (must specify voltage below). This IEC/UL contactor is rated for 20 H.P. @ 230 volt, 40 H.P. @ 460 volt 3 Phase and has 1 normally open and 1 normally closed base mounted auxiliary contacts. Two and four pole auxiliary contacts can be added to the LC1D65A for additional signalling while thermal overload relays can be directly mounted for complete motor protection.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Looking for a lower rated contactor in the same series? Try the LC1D50A which has the same dimensions but is rated for 50 AMPS and can handle slightly lower loads.

D-line contactors and overload relays are available in 11 contactor ratings for the USA market for inductive motor applications up to 150 full-load amps and resistive loads up to 200 A. They offer motor control and overload protection for motors rated up to 100 hp at 480 Vac or 125 hp at 600 Vac. 3-pole and 4-pole contactor versions available. All contactors include built-in auxiliary contacts. All screw connections have IP20 rated touch-safe terminals with both North American and International terminal markings. D-line contactors can be panel mounted with screws or DIN rail mounted.
