Square D / Telemecanique | SKU:
LC1D09FE7
40% off
LC1D09FE7
$68.07
$112.80
Unit price
/
Unavailable
Shipping calculated at checkout.

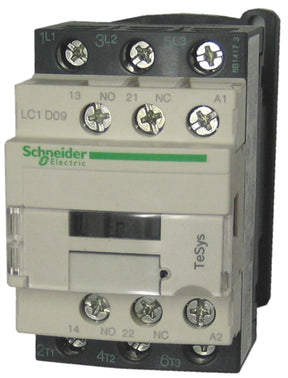

LC1D09FE7 Schneider Electric 9 AMP contactor with a 115v50/60Hz AC coil -- 3 pole, 2 H.P. @ 230 volt, 5 H.P. @ 460v 3 Phase IEC style DIN rail mounted contactor with 1 N.O. and 1 N.C. base mounted auxiliary contacts -- Suitable replacement for the LC1D0910FE7 or LC1D0901FE7
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Ships same day up until 4 p.m. EST
5-7 days for item to ship for standard delivery
Easily Installed Accessories
Auxiliary contact blocks with serrated wiping action
Front mount dust tight auxiliary contact blocks
Pneumatic time delay blocks
Transient voltage surge suppressors
Interface modules and electronic timers
Mechanical latching blocks
LC1D09FE7 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
LC1D09FE7
$68.07
$112.80
Unit price
/
Unavailable
The LC1D09 contactor is part of the largest selling line of contactors and starters in the world. The LC1D09FE7 offers high reliability with long mechanical and electrical life and the most complete line of accessories in the industry.
Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often times you will not need to purchase any additional auxiliary contact blocks
One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of the LC1D09. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.
Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often times you will not need to purchase any additional auxiliary contact blocks
One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of the LC1D09. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 0.15 | 1 | 2 | 2 | 5 | 7.5 | 9 | 20 | 3 | 0 | 1 | 1 | LC1D09FE7 | 115V AC |
