Square D / Telemecanique | SKU:
8536SDO1V03S
37% off
8536SDO1V03S
$634.46
$1,011.00
Unit price
/
Unavailable
Shipping calculated at checkout.

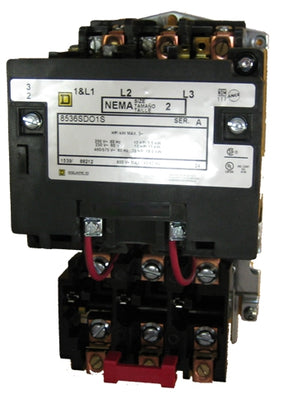

Square D 8536SDO1V03S Ser. A NEMA Size 2 3-pole starter rated at 45 AMPS with a 240v50/60Hz AC coil and thermal overload relay that requires melting alloy (heaters) elements - Rated for 15 H.P. @ 230 volt / 25 H.P. @ 460 volt 3 Phase and Form S separate control when a separate source of power is available for the control (coil) voltage.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this NEMA starter.
Need help choosing the correct heater pack? Click here to see a picture to help determine the heater pack required for this starter.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this NEMA starter.
Need help choosing the correct heater pack? Click here to see a picture to help determine the heater pack required for this starter.
Ships today if ordered before 4 p.m. EST
Easily installed onto standard 35mm DIN rail or mounted direct to panel with included base plate
Melting Alloy thermal heaters can be installed and replaced without removing starter from panel
Coil replacement is easy and can be done while starter is installed
24v and 120v control voltage starters are pre-wired for separate control
8536SDO1V03S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
8536SDO1V03S
$634.46
$1,011.00
Unit price
/
Unavailable
Class 8536SDO1S Type S magnetic starters are used for full voltage starting and stopping AC squirrel cage motors. Motor overload protection is provided by melting alloy type thermal overload relays. Class 8536SD0 starters are available in NEMA Sizes 00-7. Type S starters are designed for operation at 600 Volts AC, 50-60 Hertz.
These Square D starters from NEMA size 00-6 are provided with a melting alloy thermal overload relay as standard. Interchangeable thermal units are available in standard trip (Class 20) Sizes 00-6, quick trip (Class 10) Sizes 00-4, and slow trip (Class 30) Sizes 00-3. Single-phase starters use one thermal unit, 3-phase starters use three thermal units.
These Square D starters from NEMA size 00-6 are provided with a melting alloy thermal overload relay as standard. Interchangeable thermal units are available in standard trip (Class 20) Sizes 00-6, quick trip (Class 10) Sizes 00-4, and slow trip (Class 30) Sizes 00-3. Single-phase starters use one thermal unit, 3-phase starters use three thermal units.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 1 | 2 | 10 | 15 | 25 | 25 | 45 | 45 | 3 | 0 | 0 | 0 | 8536SD01V03S | 240v50/60Hz |
