Square D / Telemecanique  |  SKU: 8502SCO2V01S
57% off

8502SC02V01S

$210.78 $485.00
Shipping calculated at checkout.

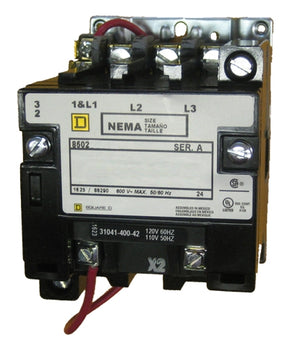

Square D 8502SCO2V01S Ser. A NEMA Size 1 3-pole contactor rated at 27 AMPS with a 24 volt AC rated coil - Rated for 7.5 H.P. @ 230 volt / 10 H.P. @ 460 volt 3 Phase and Form S separate control when a separate source of power is available for the control (coil) voltage.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Out of Stock - Can ship in 2-3 weeks

Easily installed onto standard 35mm DIN rail or mounted direct to panel with included base plate Melting Alloy thermal heaters can be installed and replaced without removing starter from panel Coil replacement is easy and can be done while starter is installed 24v and 120v control voltage starters are pre-wired for separate control

8502SC02V01S is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Class 8502SCO2S magnetic NEMA contactors are used for full voltage starting and stopping AC squirrel cage motors. Motor overload protection is provided by adding melting alloy type thermal overload relays. Class 8502SC0 starters are available in NEMA Sizes 00-7. Type S starters are designed for operation at 600 Volts AC, 50-60 Hertz.

These Square D starters from NEMA size 00-6 are provided with a melting alloy thermal overload relay as standard. Interchangeable thermal units are available in standard trip (Class 20) Sizes 00-6, quick trip (Class 10) Sizes 00-4, and slow trip (Class 30) Sizes 00-3. Single-phase starters use one thermal unit, 3-phase starters use three thermal units.

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
247.57.51010272730008502SCO2V01S24 volt AC
