Siemens  |  SKU: 3RT2028-1AC20
13% off

3RT2028-1AC20

$149.84 $172.00
Shipping calculated at checkout.

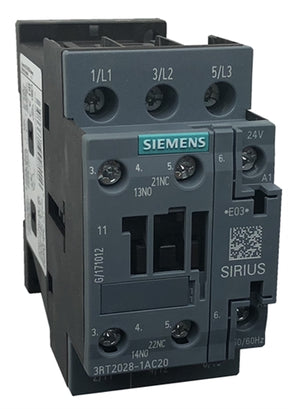

Siemens 3RT2028-1AC20 contactor that is rated for 38 AMPS and 25 H.P. @ 460v Three phase and a 24v50/60Hz coil. Comes with 1 normally open and 1 normally closed base contact and screw terminals

Catalog Page / Specifications

Stock - Can ship today if ordered prior to 4 p.m. EST

3RT2028 contactors are finger-safe according to EN 50274. The devices with ring terminal lug connection comply with degree of protection IP20 when fitted with the related terminal cover. All contactors of size S0 with two auxiliary contacts (1 N.O. and 1 N.C.) and the contactors with 4 main contacts can be expanded into contactors with 2 to 5 auxiliary contacts using auxiliary switch blocks with the identification numbers 40 to 04.

siemens logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Siemens Size S0 contactors have an auxiliary contact integrated in the basic unit. The basic units size S0 contain two integrated auxiliary contacts (1 NO + 1 NC). All basic units can be expanded with auxiliary switch blocks. For size S0 and higher, complete units with 2 NO + 2 NC are available (terminal designation according to EN 50012). The auxiliary switch block can be removed and a maximum of 4 additional auxiliary contacts can be attached. 3RU21 thermal overload relays or 3RB30 solid-state overload relays can be fitted to the 3RT2 contactors for protection against overload.

Click here for a catalog page of this 3RT2028 contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT # OF POLESAUXILIARY
CONTACTS 		CATALOG #COIL
VOLTAGE
Single Phase Three PhaseInductive
AC-1 (A) 		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP 230v HP200v HP230v HP460v HP575v HP
510 101525 353850 301 13RT2028-1AC2024V AC
