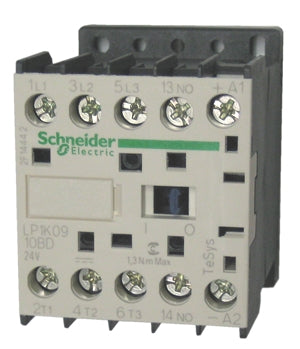

LP1K09 01BD

LC1K-line Mini-contactors, and Overload Relays are ideal for general-duty applications where small size and reliability are key concerns. These contactors are space saving as the special magnet and armature structure allow for a DC coil-operated device with the same physical size and panel footprint of the AC coil version. Mountable on 35mm DIN rail or panel mount with screws and the K-line Class 10 bimetallic overload relays are ambient-compensated and include single-phase sensitivity for phase unbalance and phase loss protection. Standard features include isolated N.C. trip contact and N.O. alarm contact, manual or automatic reset function, tamper resistant window for full load current settings, and Test trip button. Five pins connect to the contactor load side terminals — three for the power circuit and two for the control circuit — which eliminate customer wiring for the 3-wire control holding circuit.
