Sprecher + Schuh | SKU:
KTA7-25S
Obsolete
KTA7-25S
$0.00
Unit price
/
Unavailable
Shipping calculated at checkout.

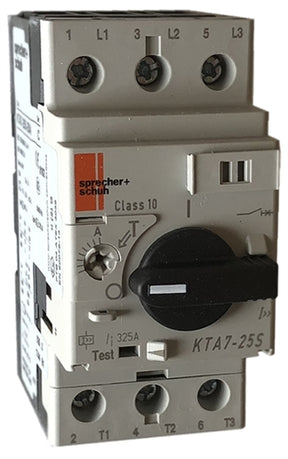

Sprecher + Schuh KTA7-25S 3 pole Manual Motor Protector that has adjustable ranges from 0.10 to 32 AMPS (must specify AMP range below) - Class 10 tripping characteristic and phase loss/overload protection - has rotary ON/OFF handle and mounts to DIN rail - Standard Interrupting Capacity
KTA7-25S Datasheet
Country of Origin : Switzerland
Schedule B / H.T.S. : 8536.49.0080
KTA7-25S Datasheet
Country of Origin : Switzerland
Schedule B / H.T.S. : 8536.49.0080
Obsolete - Please see link above for replacement
KTA7-25S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
Sprecher + Schuh’s KTA7-25S manual motor controller family offers higher interrupting capacities (KAIC ratings) and improved Type 2 Coordination and Type E (life after short-circuit). The KTA7-25H/32H offers the option of higher short-circuit current ratings (SCCR) than the standard interrupting capacity of the KTA7-25S/32S Motor Controllers. KTA7 is also available in frames up to 45A. KTC7 can be used with High Efficiency motors. KTB7 Magnetic Only controllers can be combined with CA7 contactors and CEP7 overloads to provide additional features.
Every KTA7 device is individually calibrated at the factory for the smallest and largest current it can handle. When coupled with automatic ambient temperature compensation over a range of -25°C to +60°C, very accurate thermal overload protection is obtained. In addition, the KT7 is a Class 10 device… it trips within 10 seconds under locked rotor conditions (6 x FLA). This better protects today’s T-Frame motors.
Every KTA7 device is individually calibrated at the factory for the smallest and largest current it can handle. When coupled with automatic ambient temperature compensation over a range of -25°C to +60°C, very accurate thermal overload protection is obtained. In addition, the KT7 is a Class 10 device… it trips within 10 seconds under locked rotor conditions (6 x FLA). This better protects today’s T-Frame motors.
