GV2P20

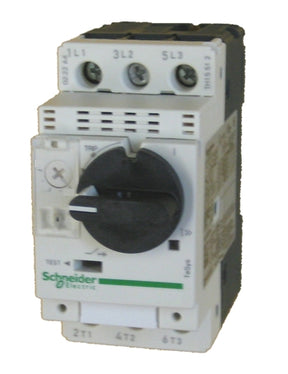

The GV2 family of products are 3-pole, horsepower rated, UL 508 listed manual starters. They include a manual disconnect, class 10 ambient-compensated thermal overload relay, and instantaneous, magnetic trip mechanism in one compact unit. Any GV2P20 manual starter can be used alone for local manual control of a motor with individual full-load currents up to 220 A.

These manual motor protectors may also be used in group motor installations in accordance with National Electric Code article 430-53. Group motor installations give you greater panel density for smaller size and require fewer parts and less wiring for installation when compared to conventional panel designs. The Schneider Electric GV2P20 products also have an additional UL 508 type E rating as a stand-alone, self-protected manual combination LC1D product family for a UL 508 Type F combination starter construction. These products have a UL-listed short circuit current rating from 10–100 kA depending on application size and voltage.
