Square D / Telemecanique | SKU:
GV2P07
47% off
GV2P07
$123.49
$233.00
Unit price
/
Unavailable
Shipping calculated at checkout.

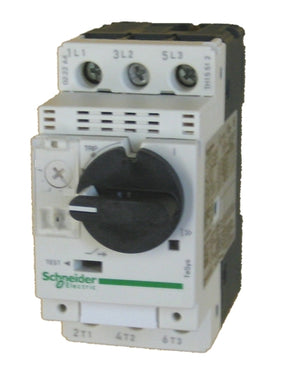

Schneider Electric GV2P07 Manual Motor Starter adjustable from 1.6-2.5 AMPS -- ON/OFF rotary operation and mounts on standard 35mm DIN rail - Class 10 tripping - Reset button
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
UL 508 Listed, IEC/EN 60947-1, 60947-2, 60947-4-1, CSA C 22.2 n° 14-05 type ECSA Certified, and CE Marked
UL Listed for group motor applications
Overload relay, Class 10, ambient-compensated, bimetallic
Single-phase sensitivity
Magnetic, instantaneous short-circuit protection
Test-trip mechanism
Provision for padlocking in the Off position
Finger-safe terminals meet IP20 standards and IEC 60529
North American and European terminal markings
GV2P07 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
GV2P07
$123.49
$233.00
Unit price
/
Unavailable
The GV2 family of products are 3-pole, horsepower rated, UL 508 listed manual starters. They include a manual disconnect, class 10 ambient-compensated thermal overload relay, and instantaneous, magnetic trip mechanism in one compact unit. Any GV2P07 manual starter can be used alone for local manual control of a motor with individual full-load currents up to 220 A.
These manual motor protectors may also be used in group motor installations in accordance with National Electric Code article 430-53. Group motor installations give you greater panel density for smaller size and require fewer parts and less wiring for installation when compared to conventional panel designs. The Schneider Electric GV2P07 products also have an additional UL 508 type E rating as a stand-alone, self-protected manual combination LC1D product family for a UL 508 Type F combination starter construction. These products have a UL-listed short circuit current rating from 10–100 kA depending on application size and voltage.
These manual motor protectors may also be used in group motor installations in accordance with National Electric Code article 430-53. Group motor installations give you greater panel density for smaller size and require fewer parts and less wiring for installation when compared to conventional panel designs. The Schneider Electric GV2P07 products also have an additional UL 508 type E rating as a stand-alone, self-protected manual combination LC1D product family for a UL 508 Type F combination starter construction. These products have a UL-listed short circuit current rating from 10–100 kA depending on application size and voltage.
