Lovato  |  SKU: DPBF1810A57560
64% off

DPBF1810A57560

$72.33 $198.89
Shipping calculated at checkout.

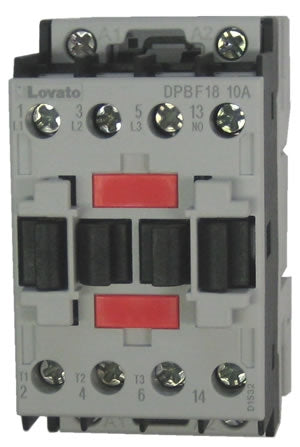

Lovato DPBF1810A57560 3-pole, definite purpose contactor rated at 18 AMPS AC-3 (30 AMPS AC-1) with 1 normally open base mounted auxiliary contact and a 575v60Hz AC rated coil. This definite purpose contactor is suited for applications that are 7.5 H.P. @ 230 volt and 15 H.P. @ 460 volt three phase and comes with screw terminals along with DIN rail mounting. Lovato RF series overloads can be added to the load side of the DPBF1810A57560 for complete motor protection.

Catalog Page / Specifications

Out of Stock - Can ship in 1-2 days

lovato logo

DPBF1810A57560 is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Lovato Electric line of 3-pole, definite purpose contactors provide a cost-effective and reliable solution for contactor needs. Each contactor comes with a base auxiliary contact, either normally open or normally closed, in addition to three power poles. The DPBF series is rated up to 690v and has coil voltages ranging from 24vAC to 575vAC. These definite purpose contactors can also be fitted with the standard RF overload relays to provide complete motor protection.

Click here for a catalog page of this Lovato DPBF contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
257.57.5152018303010DPBF1810A57560575v60Hz
