Eaton / Cutler Hammer | SKU:
C25DNF340H
70% off
C25DNF340H
$82.36
$276.77
Unit price
/
Unavailable
Shipping calculated at checkout.

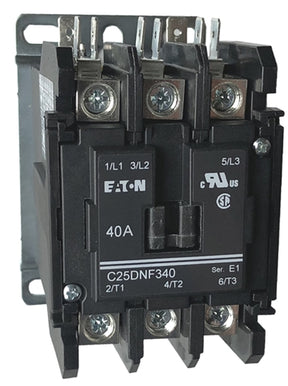

Eaton / Cutler Hammer C25DNF340H Definite Purpose contactor - 3 pole - 40 AMP - 277v50/60Hz AC coil - mounting plate
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Ships same day up until 4 p.m. EST
5-7 days for item to ship for standard delivery
UL Recognized Components UL File #E-1491, Guide NLDX2
UL recognized, CSA certified and conform to ARI 780
CSA Certified Components File #LR353, Class 3211 04, 481301 and 122201
IEC 60947-4-1
EN 60947-4-1
CE mark
RoHS Compliance(15A to 50A and 90A)
C25DNF340H is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
C25DNF340H
$82.36
$276.77
Unit price
/
Unavailable
While Definite Purpose contactors were originally designed for the HVACR industry, over the years their use has expanded to many other market segments. If a customer has an application that heats, cools, refrigerates, controls of moves air, then they are probably a good candidate for Eaton's line of C25 DP contactors and starters.
Within the Air-Conditioning segment of motor controls, DP contactors can be grouped into two segments, Compact one and two pole DP contactors from 20 AMPS to 40 AMPS and Standard frame models that range from 15 AMP up to 260 AMP.
Within the Air-Conditioning segment of motor controls, DP contactors can be grouped into two segments, Compact one and two pole DP contactors from 20 AMPS to 40 AMPS and Standard frame models that range from 15 AMP up to 260 AMP.
Click here for a catalog page of this C25D Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 3 | 7.5 | 10 | 10 | 20 | 20 | 40 | 50 | 3 | 0 | 0 | 0 | C25DNF340H | 277v50/60Hz |
