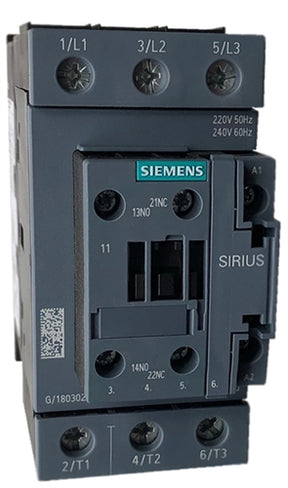

3RT2038-1AP60
Catalog Page / Specifications
Stock - Can ship today if ordered prior to 4 p.m. EST
3RT2038-1AP60 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
3RT2038-1AP60
The Siemens Size S2 contactors have an auxiliary contact integrated in the basic unit. The basic units size S2 contain two integrated auxiliary contacts (1 NO + 1 NC). All basic units can be expanded with auxiliary switch blocks. For size S2 and higher, complete units with 2 NO + 2 NC are available (terminal designation according to EN 50012). The auxiliary switch block can be removed and a maximum of 4 additional auxiliary contacts can be attached. 3RU21 thermal overload relays or 3RB30 solid-state overload relays can be fitted to the 3RT2 contactors for protection against overload.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES |
AUXILIARY CONTACTS |
CATALOG # |
COIL VOLTAGE |
||||||||
| Single Phase | Three Phase |
Inductive AC-1 (A) |
Resistive AC-3 (A) |
N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
|
5 |
15 |
20 |
25 |
50 |
60 |
90 |
80 |
3 | 0 | 1 | 1 | 3RT2038-1AP60 | 240V AC |
