Allen Bradley | SKU:
193-T1DC75
28% off
193-T1DC75
$87.12
$121.00
Unit price
/
Unavailable
Shipping calculated at checkout.

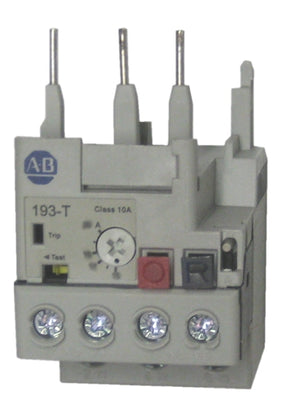

Allen Bradley 193-T1DC75 Overload relay that has adjustable ranges from 58 to 75 AMPS - comes with manual and automatic reset, phase loss protection, Class 10 tripping, reset and stop button and trip indication - mounts directly to any 100-C60, 100-C72 or 100-C85 3 pole contactor.
193-T1DC75 Datasheet
193-T1DC75 Datasheet
Out of Stock - Can ship in 2-3 weeks
IMC-Direct is not an authorized Rockwell Automation distributor
This product does not come with a Rockwell Automation warranty
193-T1DC75 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
193-T1DC75
$87.12
$121.00
Unit price
/
Unavailable
The Allen Bradley 193-T1DC75 bimetallic overload relays are ambient temperature compensated, ensuring that the tripping characteristic of the relay remains constant over an ambient temperature range of -20…+60 °C. These class 10 / 10A overload relays include a differential mechanism for high sensitivity to phase loss conditions and provide reliable motor protection in normal duty applications. In addition, they can be used to protect against overloads in DC-motor and variable frequency drive applications.
The trip rating for these AB 193 overloads is equal to 120% of the FLA (Full Load AMPS) of the motor it is protecting while the phase loss protection is set to 115% of the FLA. These overloads are trip Class 10, which means they will trip in 10 seconds of less in an overload situation. Each relay has a trip indication window which shows the status of the overload along with a test (manual) of the auxiliary contacts. All 193 series overloads conform to the following standards: IEC/EN 60497-1, -4-1, -5-1, UL508, CSA C22.2 No.14.
The trip rating for these AB 193 overloads is equal to 120% of the FLA (Full Load AMPS) of the motor it is protecting while the phase loss protection is set to 115% of the FLA. These overloads are trip Class 10, which means they will trip in 10 seconds of less in an overload situation. Each relay has a trip indication window which shows the status of the overload along with a test (manual) of the auxiliary contacts. All 193 series overloads conform to the following standards: IEC/EN 60497-1, -4-1, -5-1, UL508, CSA C22.2 No.14.
