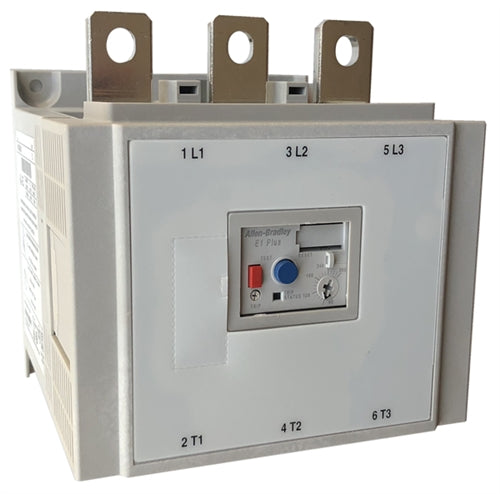

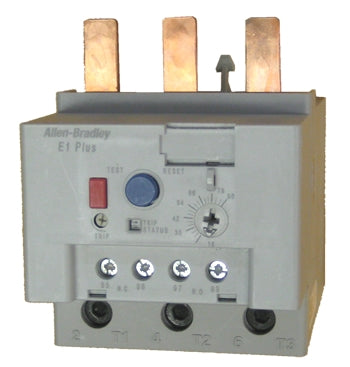

Allen Bradley E1 Plus
Allen Bradley Overload relay E1 Plus that has adjustable ranges from 1 to 90 AMPS (must specify AMP range below) - comes with manual and automatic reset, phase loss protection, adjustable class tripping, reset and stop button and trip indication - mounts directly to any 100-C09 to 100-C97 3 pole contactor (range dependent on contactor frame size). Order an Allen Bradley Overload online at IMC-Direct!
E1 Plus Datasheet
Stock - Can ship today if ordered prior to 4 p.m. EST
Trip Class (Adjustable) : 10, 15, 20 30
Reset Type : Automatic and Manual
Phase Loss protection
N.C. Trip Contact
N.O. Alarm Contact
Screw Terminals
Allen Bradley E1 Plus is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
Allen Bradley E1 Plus
The Allen Bradley E1 Plus electronic overload relay is self-powered which means it installs in the same manner as traditional overload relays. Device setup is accomplished by simply dialing the setting potentiometer to the motor FLA rating. The low energy consumption of the electronic design minimizes temperature rise issues inside control cabinets.
A wide 5:1 adjustment range results in the need for half as many catalog numbers as the bimetallic alternative in order to cover the same current range. This helps to reduce inventory carrying costs and affords greater installation flexibility for dual voltage machines. Evenly spaced setting tick marks enhance the ease of installation setup.
